Load Banks

Below you will find cut sheets for our most popular and highly utilized load banks and accessories. We have plenty more cut sheets in development. If you don't see the piece of equipment you had in mind, give us a call as we likely have it available for you.

Ask kWick Today!
...
LPH100

100 kW Load Bank

480 VAC / 100 kW

240 VAC / 93.75 kW

208 VAC / 70.4 kW

Cut Sheet
...
LP150

150 kW Load Bank

480 VAC / 150 kW

240 VAC / 147.5 kW

208 VAC / 110.5 kW

Cut Sheet
...
LP500H

500 kW Load Bank

480 VAC / 500 kW

240 VAC / 500 kW

208 VAC / 375 kW

Cut Sheet
...
LP600H
as

600 kW Load Bank

480 VAC / 600 kW

240 VAC / 600 kW

208 VAC / 451 kW

Cut Sheet
...
LP1000

1,000 kW Load Bank

480 VAC / 1,000 kW

Cut Sheet
...
L42-500

500A at 24/48VDC (12kW/24kW)

375A at 36VDC (12.6kW)

Cut Sheet
...
L48-500

500A at 48VDC

Cut Sheet
...
L121-500D

500A at 120VDC (60kW)

Cut Sheet
...
KPR 600

300 to 600VDC, 1000A Load Bank

Cut Sheet
...
SLC 150

Site Load Correction Load Bank

Cut Sheet
...
ASCO 8400

6.25 MVA Resistive / Reactive Load Bank

Cut Sheet
...

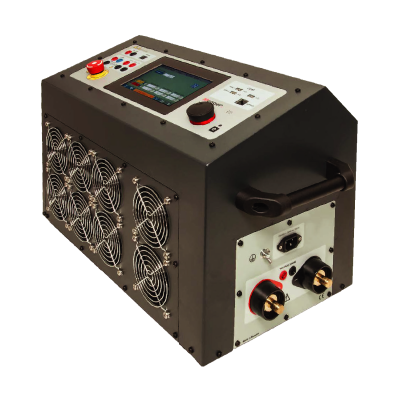

Battery Load Tester

Model Torkel 950

Cut Sheet

Medium Voltage

...
Medium Voltage Transformer

3,500 kVA

Primary Voltage range from 2,400V to 14,400V

Secondary Voltage: 480V

Wye-Wye or Delta-Wye Configurations

No Load Tap Changer

Fully-rated - No Need for external power for cooling fans

CUL US Listed

Available with short 24' step deck trailer (optional)

Cut Sheet

Metering & Instrumentation

...
Cx Plus Monitor

The Next Generation of Power Quality Monitors

64 GB Memory

5" Color Touch Screen

1024 Samples Per Cycle

Smart Battery Technology - Ensures No Lost Data

Interfaces with kWick Power's Intelligent Load Banks

Add-On Wireless Devices Available

Cx Plus Monitor Temperature & Humidity Probes for Cx Plus & Cx Monitor DC Peripherals for Cx Plus & Cx Monitor
U-View Software Download Live-View Software Download
...
Infrared Camera

180° rotating optical block

Laser-assisted auto-focus

320 x 240 (76,800 Pixel) IR resolution

Object Temperature Ranges (-20°C to 120°C or 0°C to 650°C)

Laser Distance and On-screen Area Measurement

Bright LED work light

T530 Cut Sheet Getting Started Guide

Power Distribution

Cables & Accessories

4/0 Gauge - 400A

1/0 Gauge - 260A

Cut Sheet
Bins

Standard - 45" x 48" x 34"

Mini - 30" x 32" x 34"

Cut Sheet
250A Load Bank Terminal Block Unit

For 250A Starline Track Busway System

...
Cut Sheet
400A Load Bank Terminal Block Unit

For 400A Starline Track Busway System

...
Cut Sheet
225A Load Bank Tap Off Box

For PDI PowerWave 2 Bus System

...
Cut Sheet
Other Items

Insulated Multitaps

Extension Cords

Cable Ramps

Mechanical Lugs

Cut Sheet
